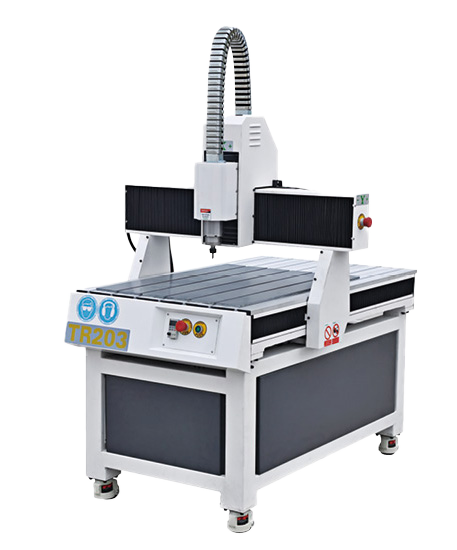

TigerTech CNC Router TR203
We provide HSD collet spindle for this machine. You can choose the power you need according to your materials.
As: 3.0KW, 4.5Kw, 6.0Kw. We can offer different rpm, Mainly: 18000rpm and 24000rpm. Also we give different options for this machine: * You can choose the T-slot or vacuum table or vacumm & T-slot table. * Air cooling spindle or water cooling spindle. * Steel gantry or alluminum alloy gantry. * Different color as you requested. * Different size as you requested.
| Item | Description | TR203 |
| 1 | X,Y,Z working area | 600×900×150mm |
| 2 | Table size | 780×1316mm |
| 3 | Resolution | ± 0.03/300mm |
| 4 | Repeatability | ±0.02mm |
| 5 | Machine structure | Cast steel,table type |
| 6 | X structure | Ball screw and linear guides |
| 7 | Y structure | Ball screw and linear guides |
| 8 | Z structure | Ball screw and linear guides |
| 9 | Max.consume power | 3.0kw |
| 10 | Max. rapid speed | 0-18000mm/min |
| 11 | Max. working speed | 0-15000mm/min |
| 12 | Spindle power motor | 1.5kw/2.2kw/3.0kw self-coolant spindle |
| 13 | Spindle speed | 0-24000rpm |
| 14 | Working mode | Stepper motor |
| 15 | Working voltage | AC220V, 50/60Hz, Single phase |
| 16 | Command code | G Code |
| 17 | Operating system | NC-Studio system or Mach3 system |
| 18 | Interface | USB |
| 19 | Memory | 128MB (or flash drive) |
| 20 | X, Y working accuracy | <0.01mm |
| 21 | Software | Artcam Express, Vectric, Aspire |
| 22 | Packing size | 1780×1180×1670mm |
| 23 | Gross weight | 250kgs |
