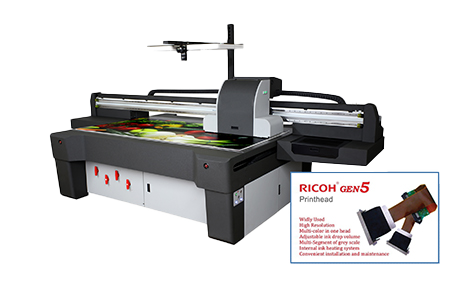

ENSPIRE UV Flatbed Printer NC-H 1610/960UV
MAIN FEATURES
1. Solid steel structure machine body, 24mm thick steel. Net weight 450 Kg.
2. 53mm thick Carbon Alloy Honeycomb suction Printing bed , Hardening treatment , absorb UV light.
3. Double 400W Fuji AC Servo Motor in Y axis, 750W Fuji AC Servo Motor in X axis.
4. Two 20mm thick imported non-noisy guide rails in X axis, Two 25mm thick imported non-noisy guide rails and two 50mm thick imported screw rod guide in Y axis. Famous Italian belt and timing belt pulleys help to reach resolution 5%mm.
5. Imported UV LED water cooling and Curing system, lifetime up to 60000 hours without noise.
6. Big ink box equipped with ink level alarm system, imported ink-root system, sub ink box is with heating and circulation function,
7. Ink box switch is full automatically controlled.
8. Printhead plate can be arranged in 2/3 rows,12 heads lay design which can match all printing solutions.
|
PRINTING SPEED |
PRINTING MODE |
ONE GROUP |
TWO GROUP |
THREE GROUP |
|
|
RICOH GEN5 |
720*600dpi (4Pass) |
215 Sqft/h |
430 Sqft/h |
645 Sqft/h |
|
|
720*900dpi (6 Pass) |
161 Sqft/h |
323 Sqft/h |
79 Sqft/h |
||
|
720*1200dpi (8 Pass) |
107 Sqft/h |
215 Sqft/h |
323 Sqft/h |
||
|
PRINTING MODE (W+CMYK+V)(SIX-EIGHT) HEADS |
|||||
|
RICOH GH 2220 |
720*600dpi (4Pass) |
129 Sqft/h |
N/A |
N/A |
|
|
720*900dpi (6 Pass) |
107 Sqft/h |
N/A |
N/A |
||
|
720*1200dpi (8 Pass) |
9 Sqft/h |
N/A |
N/A |
||
|
NC H – 1610 UV TECHNICAL PARAMETERS |
|||
|
PRINT HEAD QUANTITY |
RICOH GEN5 (2-9)Pcs Optional RICOH G2220 (6-8)Pcs Optional |
MEDIA TYPE |
All advertising, decoration materials, Metal Plate, Glasses, Wooden Board, Textile, Leather, Vinyl, Mobile Covers etc. |
|
PRINTING WIDTH |
1.6 m * 1.0 m |
OPERATION ENVIRONMENT |
Temperature 20-30˚C, Humidity 60-70% |
|
PRINTING THICKNESS |
1 mm-60mm 1mm-120mm |
POWER SUPPLY |
AC 220V, 50Hz ±10%, UPS is required |
|
LAMP |
LED UV LAMP |
INK |
UV Ink, CMYK, LC, LM, White, Varnish |
|
IMAGE FORMAT |
TIFF/ JPG/ EPS/ PDF |
PACKING SIZE |
L/W/H 3468mm/ 2000mm/ 1570mm, APP Size/ 3368mm/ 1900mm/ 1470mm |
|
RIP SOFTWARE |
PHOTOPRINT |
COMPUTER CONFIGURATION |
System: Windows 7/8/1064 bits (Professional/ Version) CPU:, - Inter i5 RAM: 8GB Hard Disk: SATA 500G Hard Disk Format: NTFS CD ROM: DVD Recordable Space for Disk C: 100 GB at least |
|
POWER |
4500 W |
GW/ NW |
480 Kg/ 450 Kg |
