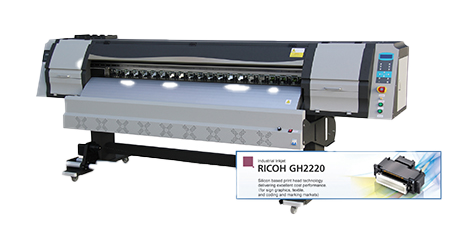

ENSPIRE Pinch Roller LED UV Printer 6 ft NC L-1804UV
Main Functions Configuration:
- It adopts high resolution, mute double guide rail, carriage running is more stable;
- It adopts high power motor of 750W Panasonic,to ensure running more reliable and stable;
- Equiped professional rubber roll feeding system, so the step Is more precise;
- It is equipped with touch panel control, to ensure operation more convenient;
- It’s optional for double 4 color or double 6 color.
|
NCL – 1804 UV TECHNICAL PARAMETERS |
|||
| PRINT HEAD MODEL | GH 2220 | MEDIA TYPE | Outdoor Solvent/ Eco-solvent Based Roll Media (Flex, Vinyl, Leather, Artificial, Leather etc) |
| PRINTING WIDTH | 1.82m*Unlimited Length | OPERATION ENVIRONMENT | Temperatue 20-30t, Humidity 60-70% |
| PRINTING THICKNESS | <5mm | POWER SUPPLY | AC 220V, 50Hz ±10%, UPS is required |
| IMAGE FORMAT | TIFF/JPG/EPS/PDF | INK | UV Ink C M Y K, white, V |
| RIP SOFTWARE | Photoprint UV | PACKING SIZE/ APP SIZE | L/W/H 3300mm/ 960mm/ 1050mm/ 3200mm/ 860mm/ 950mm |
| POWER | 4000W | COMPUTER CONFIGURATION | System: Windows 7/8/1064 bits (Professional/ Version) CPU:, - Inter i5 RAM: 8GB Hard Disk: SATA 500G Hard Disk Format: NTF CD ROM: DVD Recordable Space for Disk C: 100 GB at least |
| GW/ NW | 460 Kg/ 340 Kg | ||
